Performance-Based Design Software

ideCAD Performance-based design Software BIM Tools is a part of Revolutionary All-in-One Structural Engineering Software for AEC Professionals to create architecture, 3D Modeling, analysis, design, and construction detailing documents.

One Structural Engineering Software,

One Building model,

One download,

One revolutionary reason to switch.

Structural analysis and design Bim software for steel frames, concrete frames, concrete slabs, concrete shear walls, composite beams,  and steel connections can be performed based on various US and international design codes.

In the Moment-curvature relation confined and unconfined concrete model and reinforcement model are used.

Moment-curvature relation is used for the evaluation of nonlinear hinge and PMM-hinge behavior.

Concrete and reinforcement fiber models is used for shear walls. PMM interaction automatically accounts for the fiber section model.

Constant Single Mode is a single-mode pushover analysis procedure based on a single-mode response at the initial step. Constant Single Mode Pushover analysis features in ideCAD include PMM-hinge for columns and fiber section model for shear walls.

Adaptive Single Mode is a single-mode pushover analysis procedure based on a single-mode response at each pushover step. Adaptive Single Mode Pushover analysis features in ideCAD include PMM-hinge for columns and fiber section model for shear walls

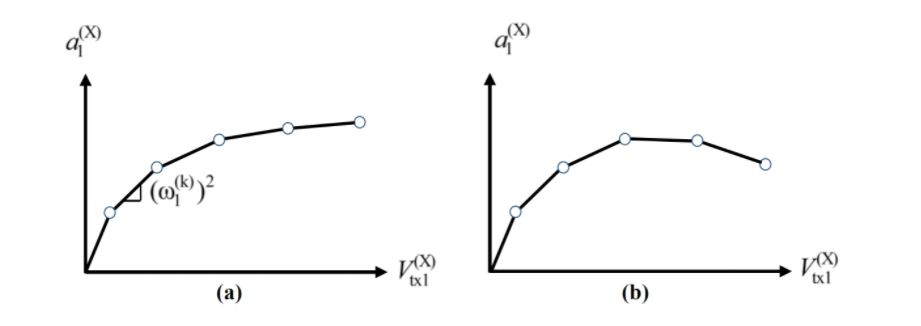

Incremental Response Spectrum Analysis (IRSA) is a multi-mode pushover analysis procedure based on the approximate development of the so-called modal capacity diagrams. IRSA analysis features in ideCAD include PMM-hinge for columns and fiber section model for shear walls.

A performance check is made by comparing plastic high rotation and fiber strain with performance level limits.

ideCAD Architectural is a multidisciplinary, collaborative Architectural Design Bim Software for better workflows.

ideCAD Structural is a multidisciplinary, collaborative Structural Engineering Design Bim Software for better workflows.

ideCAD is a multidisciplinary, collaborative Construction Document Bim Software for better workflows.

We mean it when we say, "Just as you planned"; One Bim Software, One Bim model, One Bim download, One revolutionary reason to switch.
