Structural Steel Connection Design Software

ideCAD Structural Steel Connection Design Software BIM Tools is a part of Revolutionary All-in-One Architectural and Structural Engineering BIM Collaboration for AEC Professionals to create architecture, 3D Modeling, analysis, design, and construction detailing documents.


GET STARTED FOR FREE »

All-in-One Steel Connection Design

669_2018
Everything you need in Structures

Structural Analysis, Structural Design, Structural Steel Connection Design, Structural Detailing, All in One BIM Software



The best structural engineering software for structural analysis, structural design, Structural detailing, and code check of steel and concrete building structures.



One Structural Engineering Software,

One Building model,

One FREE download


ONE REVOLUTIONARY REASON TO BUY NOW »

Bim for Structural Steel Connection Design

Structural Steel Connection Design Software for Shear Connections, Moment Connections, Brace Connections, and Base Plate Connections.


Geometry Restrictions for Steel Connections

664_1982

Automatically check bolt spacing and edge distances against code prescribed minimums and maximums for steel connections.


Shear Connection Design

596_1983
ideCAD Structural Steel Connection Design Software Tools include the following Shear connections.

Single Angle (all bolted or all-welded)

Single Angle (bolted/welded)

Double Plate (all bolted or all-welded)

Double Plate (bolted/welded)

Single Plate (welded/bolted)

Single Plate (all welded)

Double Plate (welded/bolted)

Double Plate (all welded)

Single WT (all-welded or welded/bolted)

Single Seat


Moment Connection Design

597_1984
ideCAD Structural Steel Connection Design Software Tools include the following Moments Connections.

Welded Flanges

Flange Plate (Bolted/Welded)

Flange Plate (All Welded)

Through Plate

Collared Plate

Double WT (all-welded or welded/bolted)

Directly Welded


Brace Connection Design

598_1986
ideCAD Structural Steel Connection Design Software Tools include Brace Corner Connection and  Brace Center Connection.

Base Plate Connection Design

600_1987

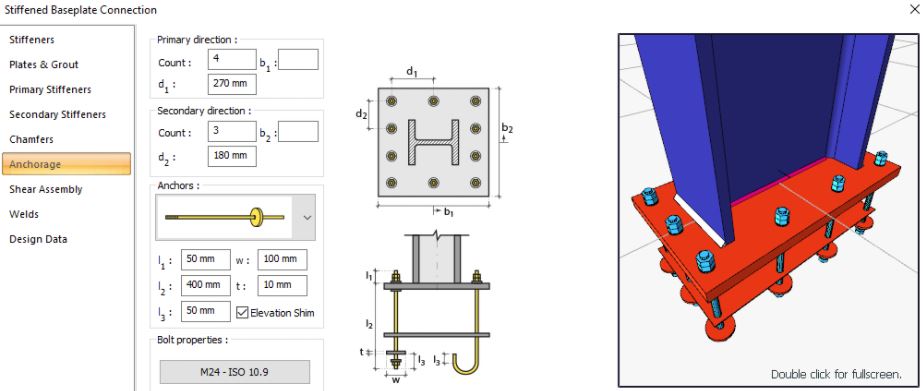

ideCAD Structural Steel Connection Design Software Tools include Column - Foundation Connection (Stiffened Base Plate)

Design Code-check for Connections

599_1985

ideCAD Structural Steel Connection Design Software Tools include Connection Design with Seismic Provisions and AISC 360-16


Bim for Steel Connection

Automate your structural Steel Connection Details

Everything you need in Buildings for Structural Steel Connection Detailing


Explore All-in-One Bim for Structural Steel Design and Detailing Possibilities »
